Fiberglass Rodding Cane, Duct Rod

FOB Reference Price:Get Latest Price
$50.00 - $200.00 / Set | 1 Set/Sets (Min. Order)
Lead Time:
Quantity(Sets) 1 - 50 >50
Est. Time(days) 15 Negotiable
Customization:
Customized logo (Min. Order: 50 Sets)
Customized packaging (Min. Order: 50 Sets)

More

Graphic customization (Min. Order: 50 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China
Brand Name:
Long Zhuo
Model Number:
FDR
Type:
Fiber Optic Cable
Single-Mode Fiber:
0
Multi-Mode Fiber:
0
No. of Fiber:
0
Use:
Cable Laying
Duct rodder Length:
50-500m
Diameter:
4.5mm-18mm
Material:
fiberglass inside, rugged plastic layer
Temperature:
-40℃ to +80℃
Color:
yellow, white , etcs
weight(kg):
20-100
Bending radius min:
800mm
Linear density(g/m):
150g/m
Port:
Tianjin, China
Certification:
ISO9001
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Fiberglass Duct Rodder packages in plastic woven, pallet or as your request
Port
Tianjin port
Lead Time :
Quantity(Sets) 1 - 50 >50
Est. Time(days) 15 To be negotiated
Product Description

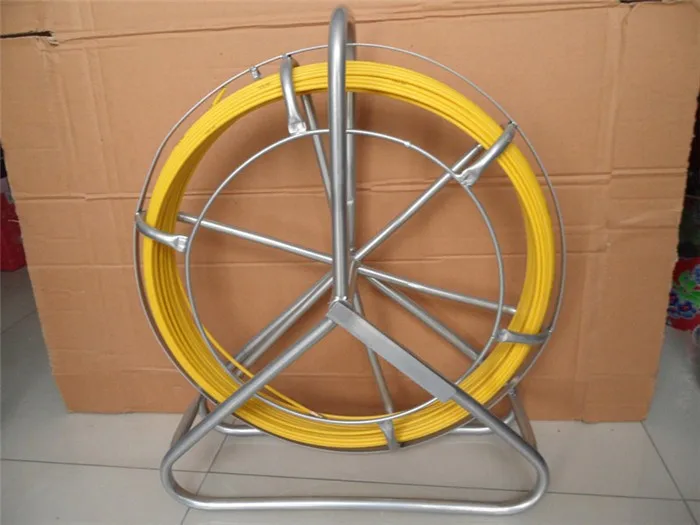

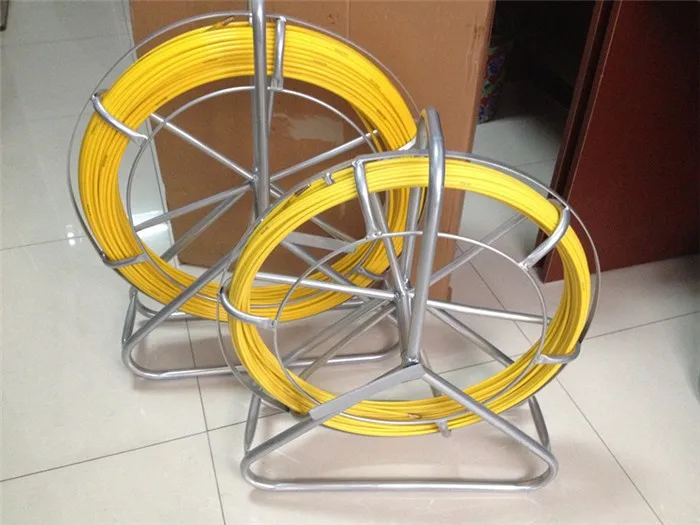

Portable Mini Duct Rodder without Wheels

Rod Dia.: 4.5mm, 6mm.

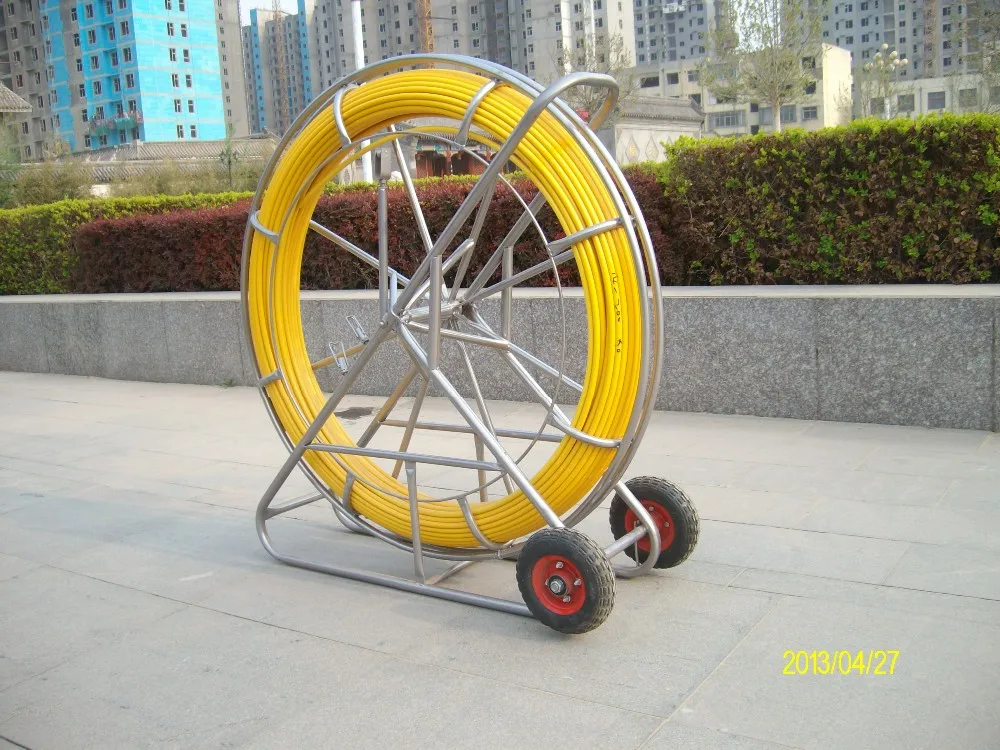

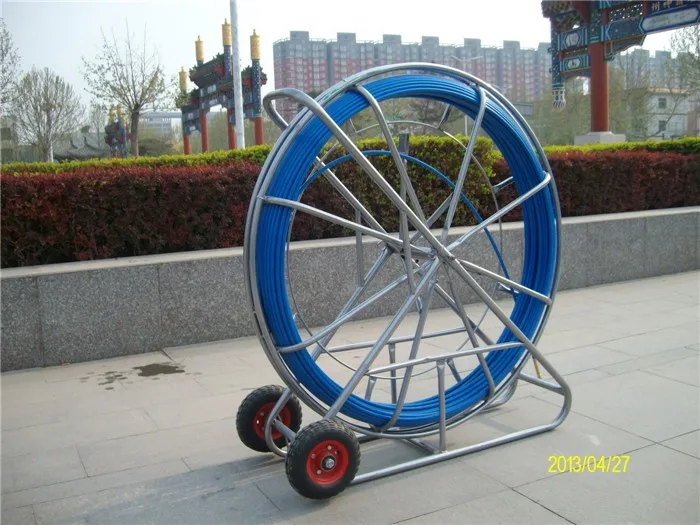

Fiberglass Duct Rodder with Wheels

Rod Dia.: 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm.

Fiberglass Duct Rodder Introduction

Fiber Glass duct rodders or push rodders and commonly called python rod by its nature passing through under ground ducts by ups, down negotiating the duct curvature thus very convinient to pull the cables , wires inside the duct , also it can be used to locate the duct block or damage portion identifications . its has high safety aspects to use underground applicartions because of its non conductivity of electricity, sets a major safety to site workers .
It has been built with rigid sturdy steel tubular fabrication for easy usage at site and can be self coiled in the tubular frame and easily roll like trolley on ground by its wheels fitted at bottom .
The ducts rodders normmaly comes in various diameters from 4.5 mm to 16 mm as per ground applications. normally 10 mm dia FRP rodders used for pulling, cleaning and locating blocks in Fiber optic Cable network applications .

Technical Data

Technical Date of Fiberglass Duct Rodder

Rod Diameter (mm)
Φ 4.5,Φ 6,Φ 8,Φ 10, Φ 11, Φ 12, Φ 13, Φ 14, Φ 15, Φ 16
Rod Length (m)
30m~5000m
Frame Spec. (mm)
1300x450x1330,1200x420x1220,980x350x1000,680x240x700,420x180x400

Material of Fiberglass Rod

Fiber glass rod inner
Extruded by fiber glass and high strength resin at high temperature
Fiber glass rod outer
High Density polyethylene coating
Metal Frame
Steel with high-temperature sprayed plastic or hot dip galvanized
Detailed Images

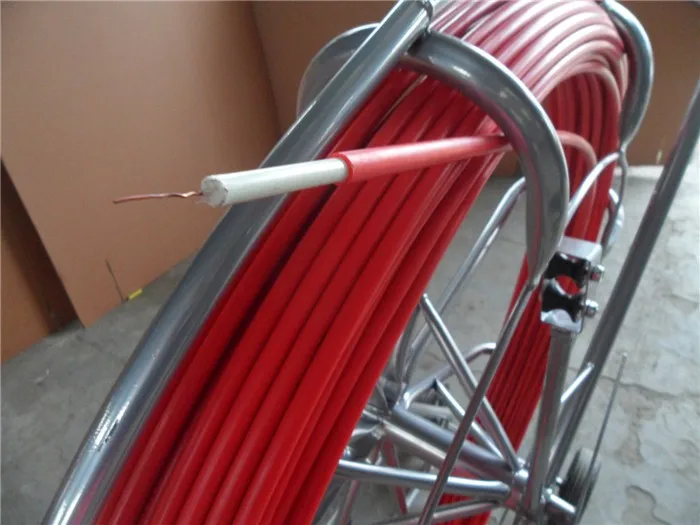

              Fiberglass Rod with Copper Wire

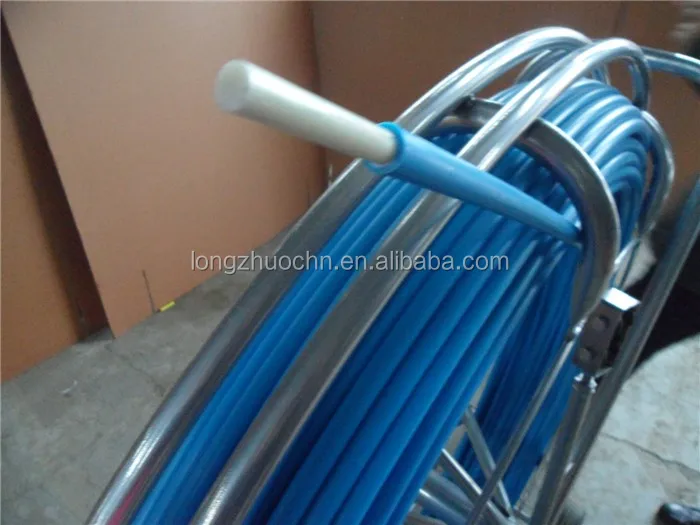

                               Fiberglass Rod

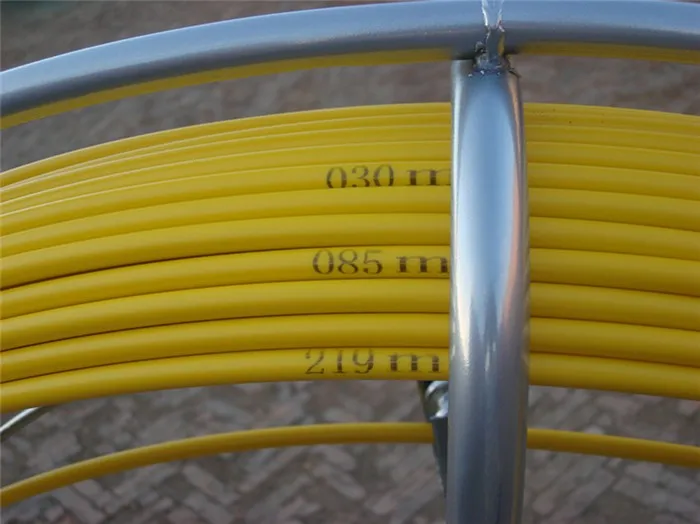

                                Meter Mark

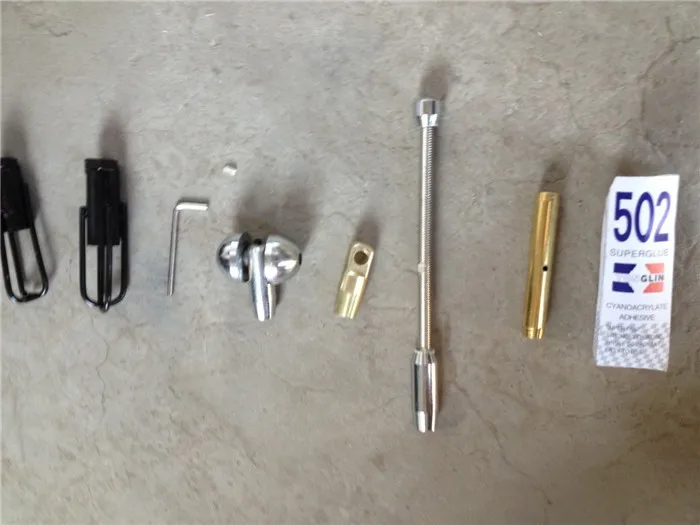

                Kinds of Mental Drawing Head

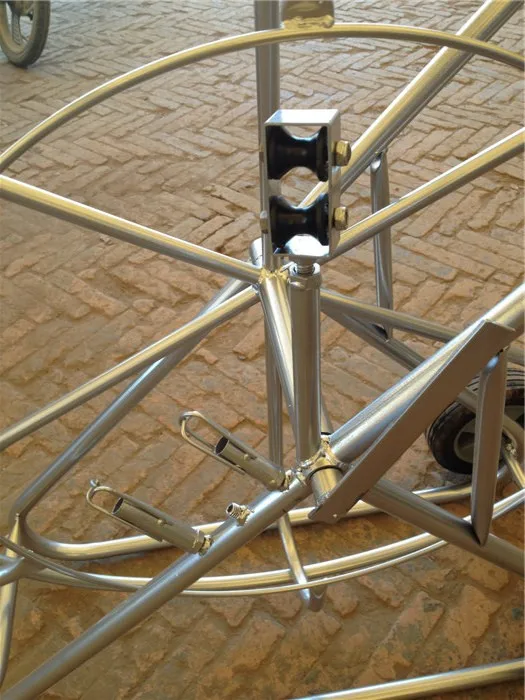

                                                Rod Guide

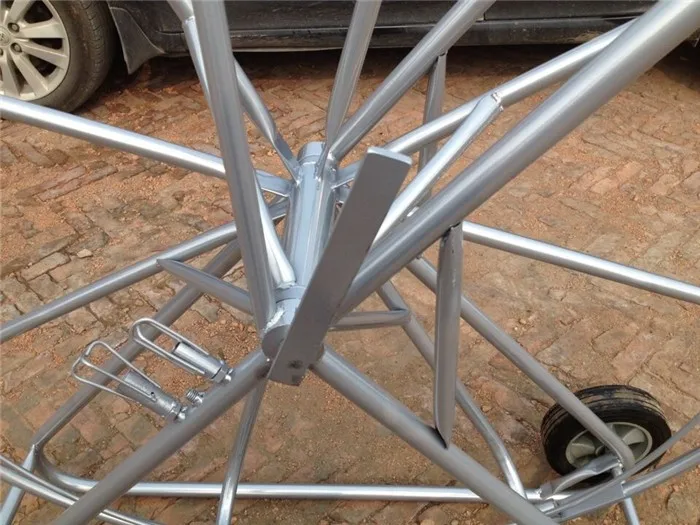

                                            Hand Brake

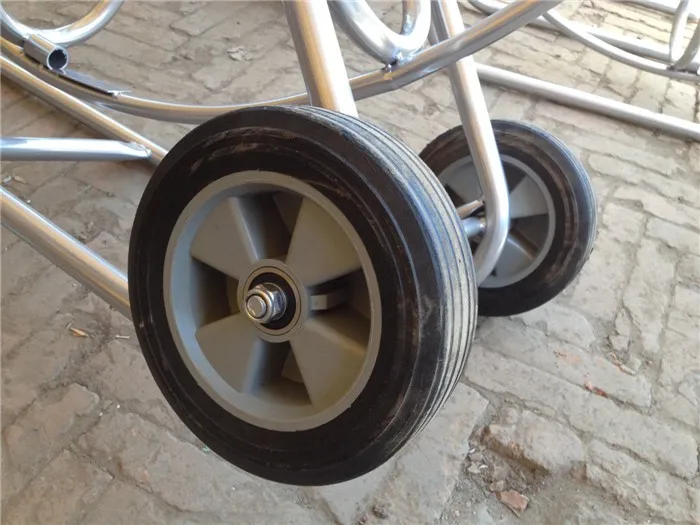

                                Wheel Type 1

                                Wheel Type 2

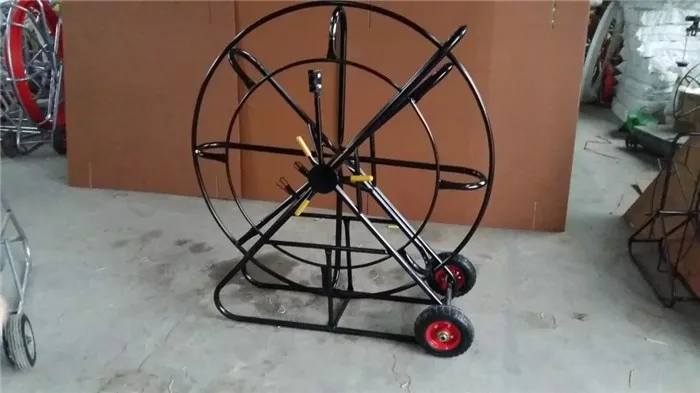

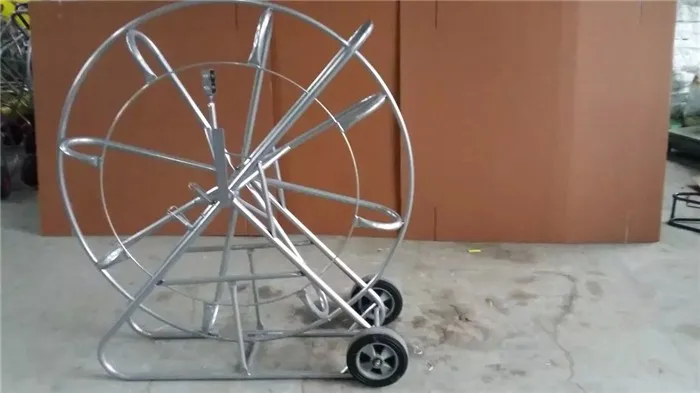

                                Frame Type 1

                                Frame Type 2

More Pictures

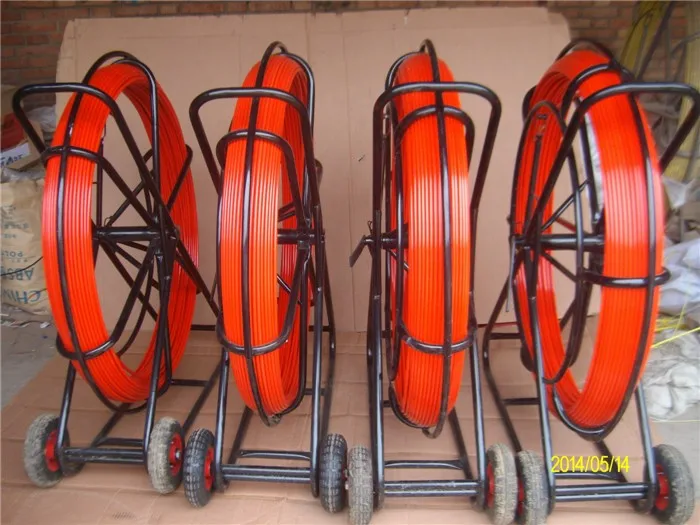

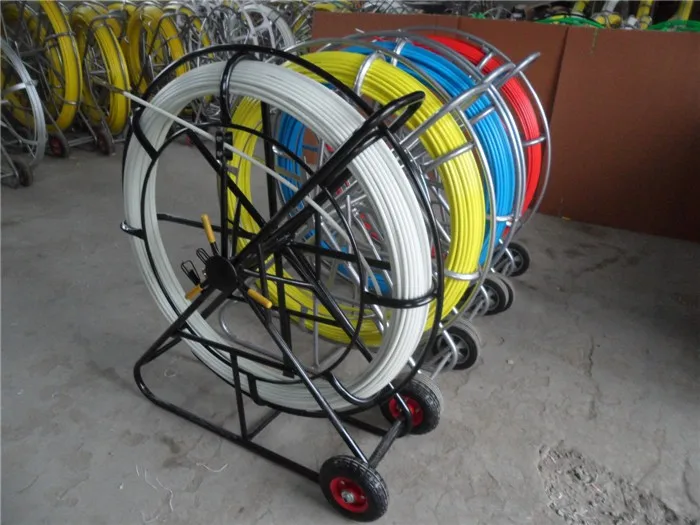

We have many colors Fiberglass Duct Rodder for your choice.

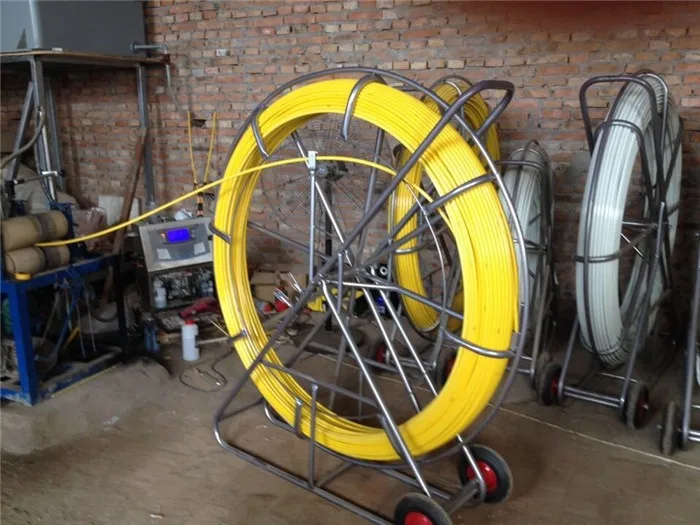

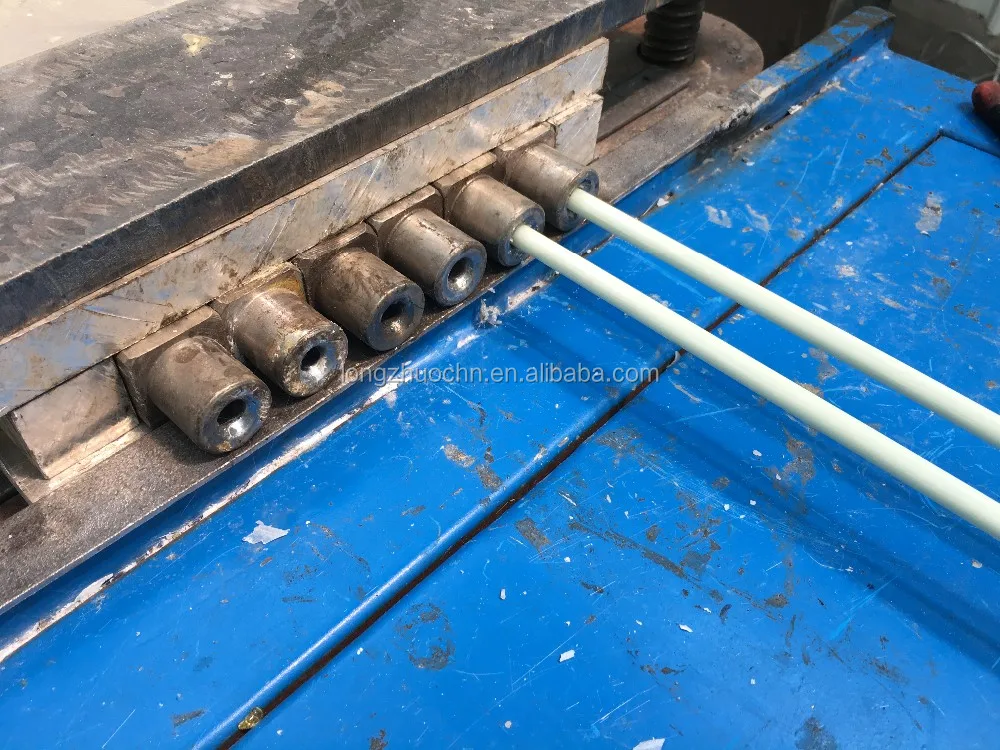

Production Line

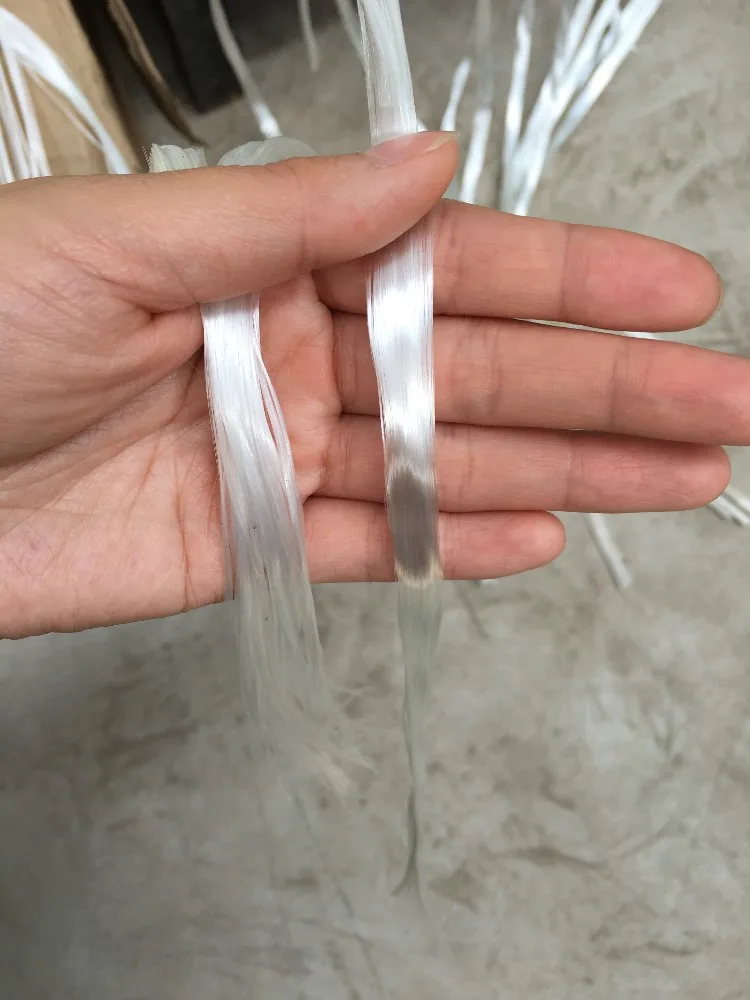

Glass Fiber Mat

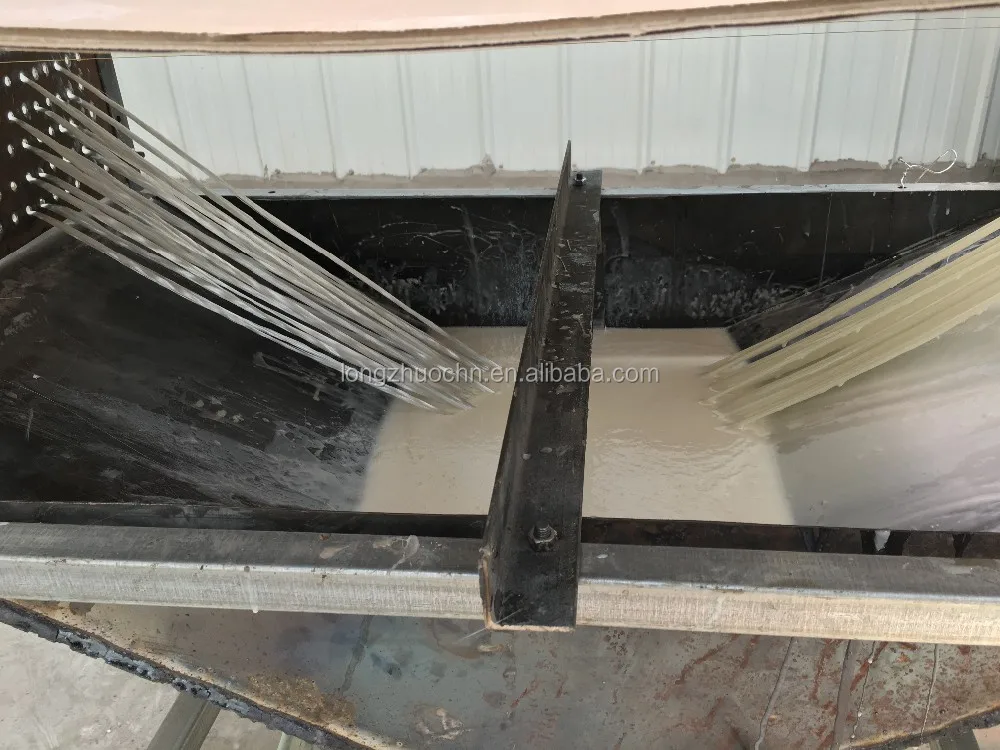

Resin Basin

Fiberglass Rod

Install into the Frame

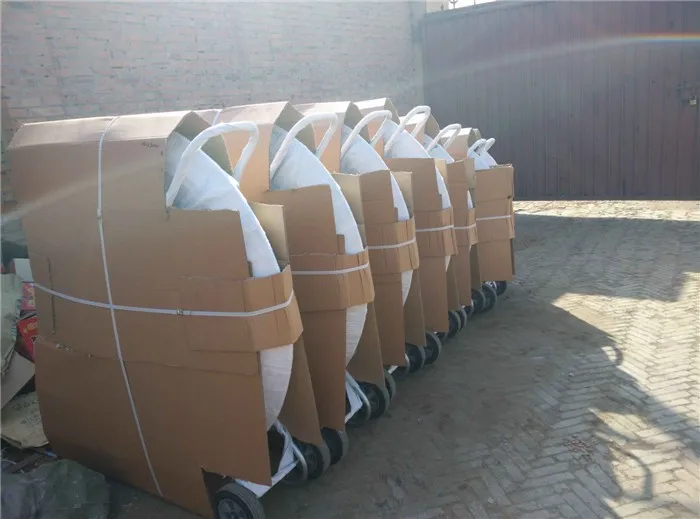

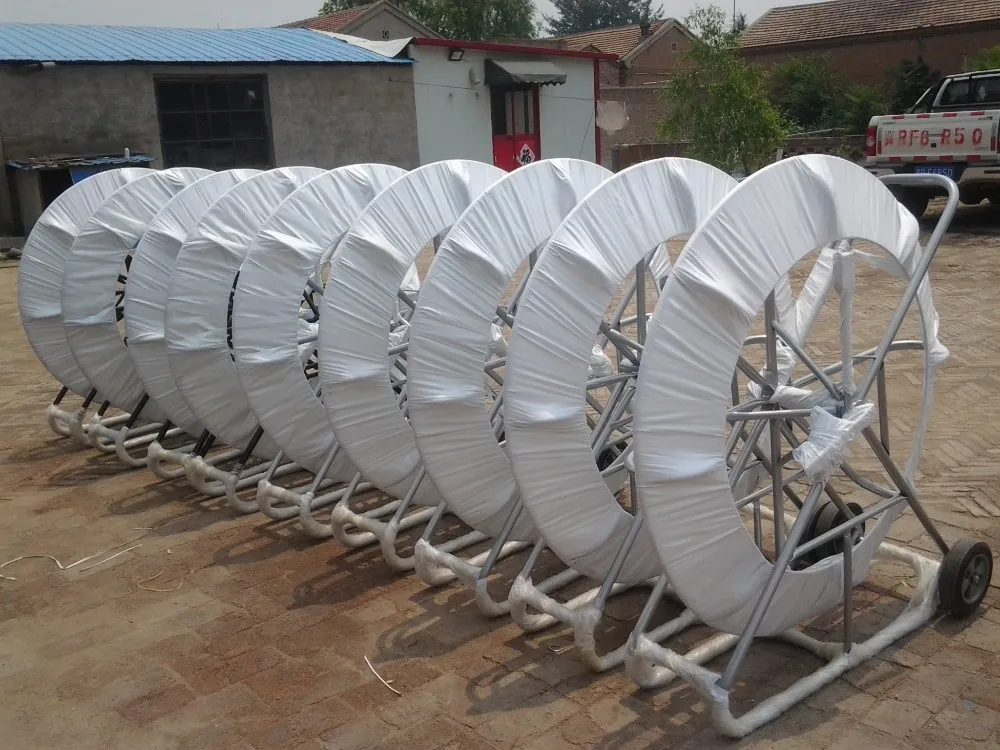

Packing & Delivery
